Overview

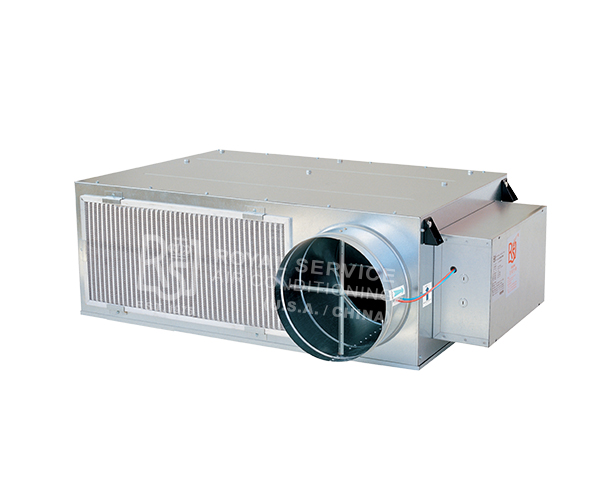

The FPS Series Fan Powered VAV Terminal Unit is engineered to deliver a constant and reliable air supply to occupied zones. By thoroughly mixing primary and induced air, the unit ensures stable airflow and superior air distribution—even under high turndown conditions of the primary air volume. This design provides consistent comfort, energy efficiency, and acoustic performance in demanding building environments.

Key Features

• Durable casing: High‑quality galvanized steel, not less than 20 gauge (1.0 mm)

• Accurate airflow sensing: Cross airflow sensor with multi‑point measurement, amplification factor ≥ 2.5

• Robust damper construction: Gasket sandwiched between two 18‑gauge (1.2 mm) G.I. sheet metal layers for tight sealing

• Thermal and acoustic insulation: 1" (25 mm) fiberglass internal insulation with BGT cover, compliant with NFPA‑90A and UL‑181 standards

• Low leakage: Casing and damper leakage not to exceed 1% at 4 in.w.g. (1000 Pa)
